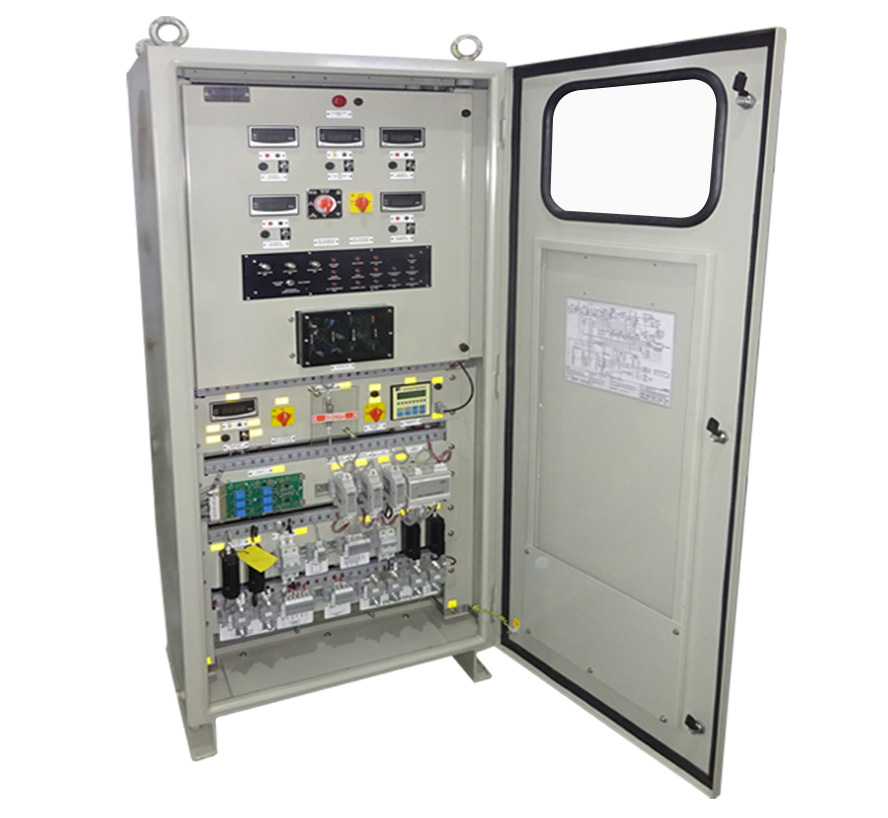

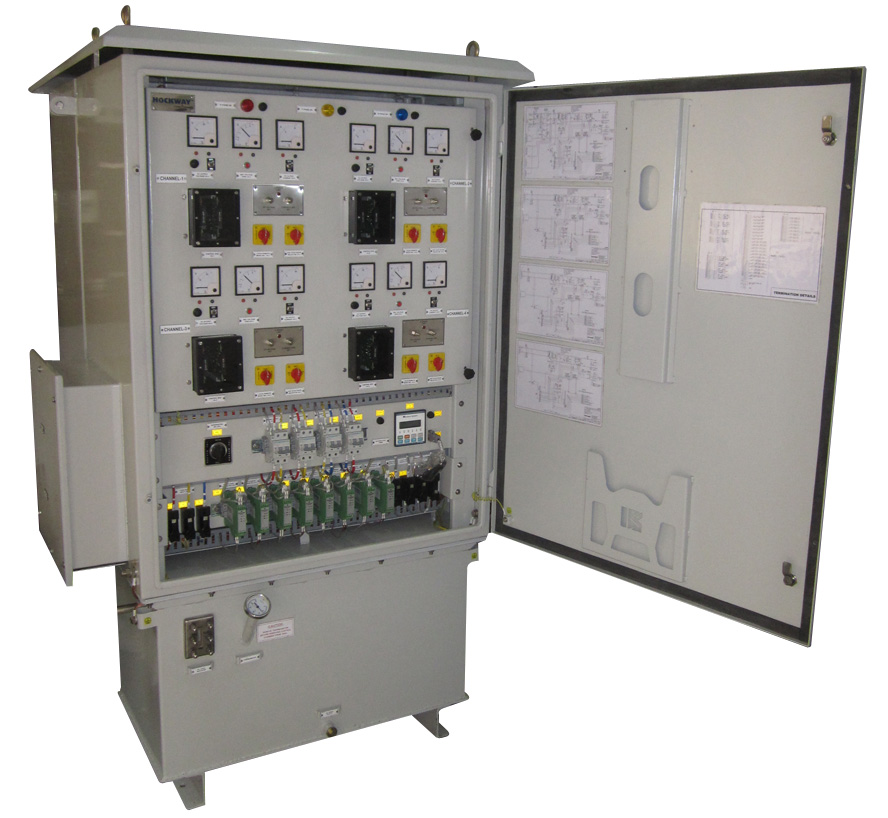

These units employ latest Thyristor/Diode technology to offer unmatched performance and reliability. These units are very rugged and are specially developed to withstand high level of transients and offer very high MTBF.
These are available in Air Cooled/Oil Cooled, Indoor/Outdoor, Single Phase/Three Phase type. The present ratings are 1V, 1A to 150V, 1000A.

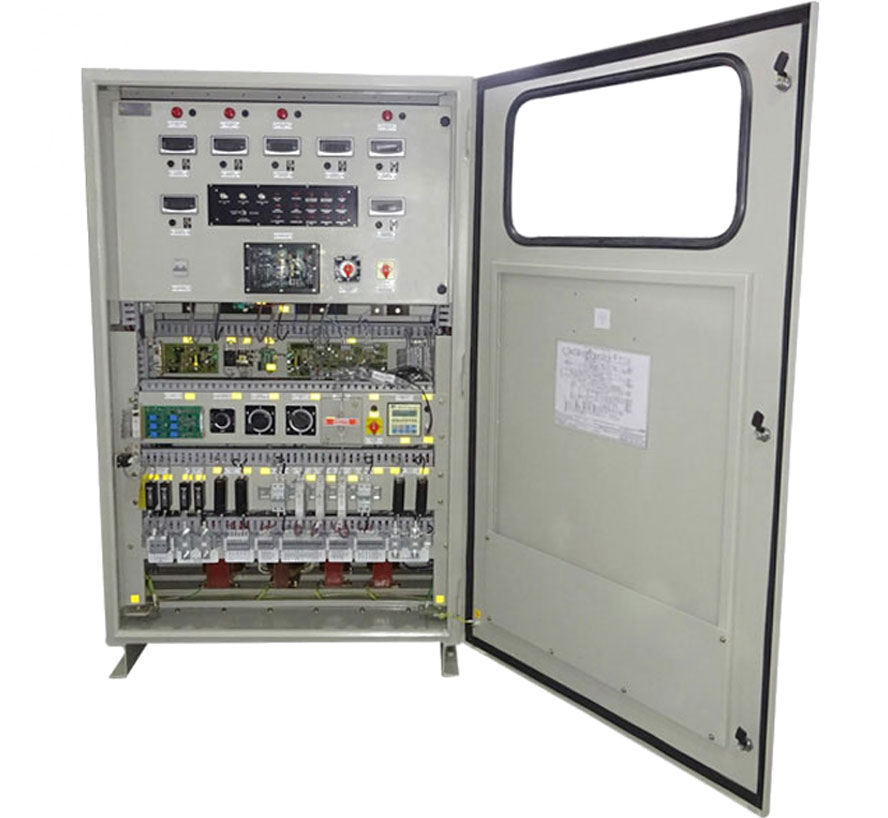

AC/DC operated Hybrid Cathodic Protection Transformer Rectifier (CP T/R) Units are capable of operating from AC as well as DC supply. These units are specially designed for operation in areas where AC supply is of poor quality.
These units employ hybrid Thyristor/Transistor technology and provide reliable operation over a wide range of AC & DC supply. These are available in Air Cooled/Oil Cooled, Indoor/Outdoor, Single Phase/Three Phase type. The present ratings are 1V,1A to 100V,100A.
Kristron Systems DC operated units have been designed to operate from DC power supply. These units are capable of operation on very wide range of DC supply. A standard unit can be operated on any DC voltage from 20V to 70V.
These units are designed with latest MOSFET/IGBT technology and provide high efficiency and unmatched level of performance and reliability. These are available in Air Cooled, Indoor/Outdoor type. The present ratings are 1V,1A to 100V,100A.

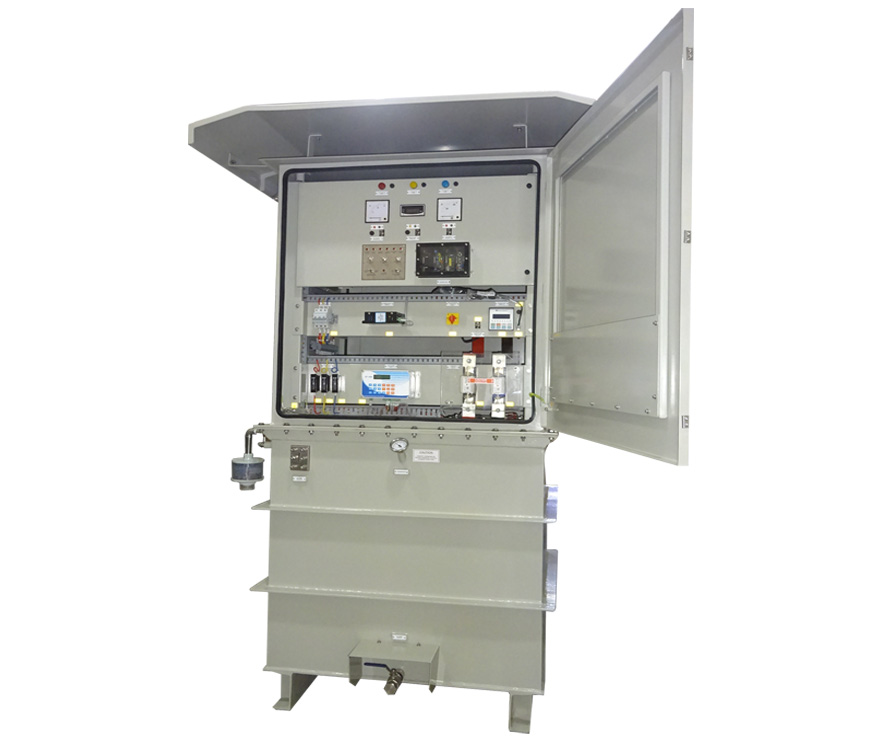

In addition to the above capabilities of standard C.P. units, our Smart Cathodic Protection Units (CP T/R & CPPSM) are capable of being monitored & Controlled remotely via RS485, Ethernet or GSM. These units offer full Remote Control and Monitoring through Central PC/SCADA and provide logging of all parameters with accurate time stamp at desired intervals. These units also have built-in GPS / real time clock functionality and can be easily synchronized for Current Interruption. SMART units can operate over Copper/FO/GSM networks.
Smart Cathodic Protection Units (CP T/R & CPPSM) Units are ideally suited for locations where remote control and monitoring for Cathodic Protection (CP) system is necessary. These can be used for various Cathodic Protection (C.P.) applications such as Tank Farm, Mounded Bullets, Cross Country & Plant Pipelines etc. The SMART T/R system enables easy, wired / wireless centralized monitoring of various TR parameters like TR Voltage, TR Current, Reference Potential and various alarms.
We also specialise in manufacture of these feature enhancing products which can added on CP Units or used as stand alone items.

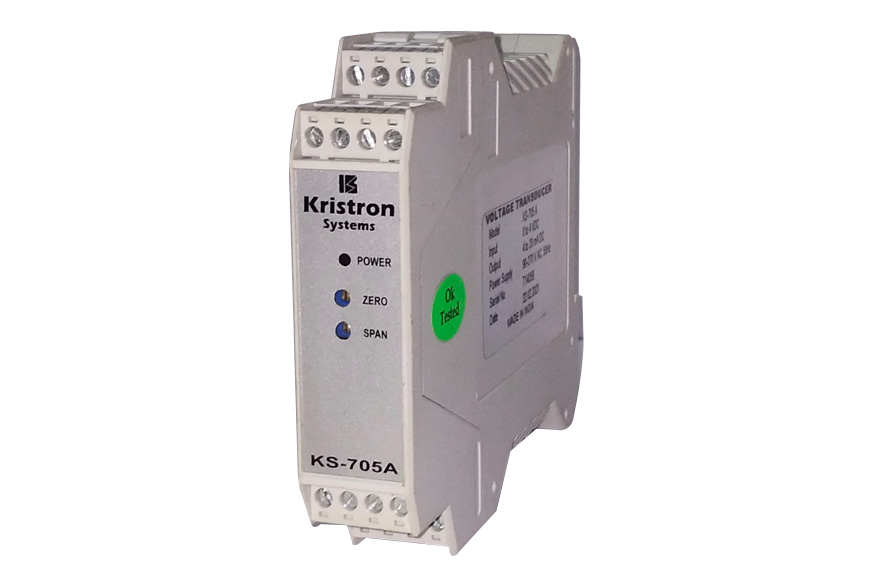

These are High accuracy devices which provide optical and galvanic isolation between input and output.
Input : Current (AC/DC), Voltage (AC/DC), RTD Pt-100 sensor, Thermocouple.
Output : 4 - 20 mA DC, 0 - 5 V DC, or as required.

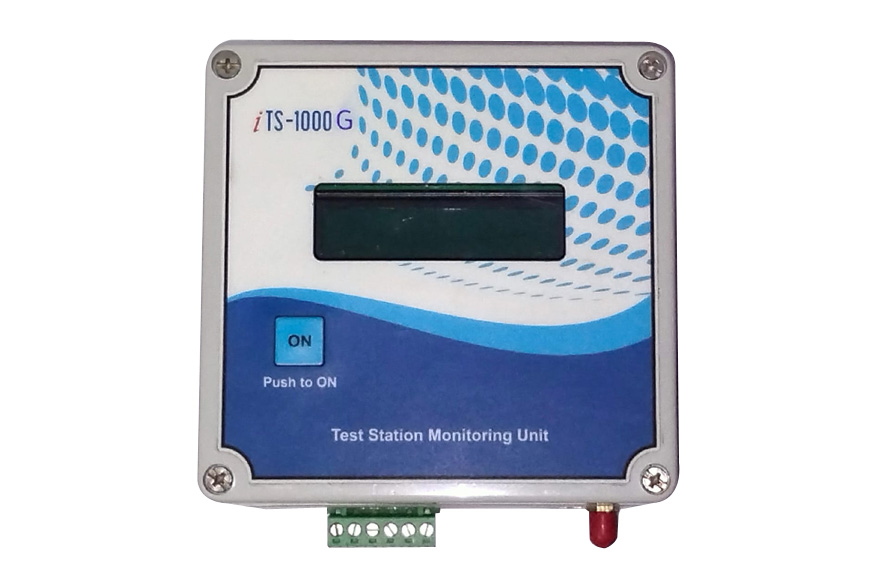

The GSM based remote monitoring system, iTS‐1000, developed for Cathodic Protection (C.P.) Test Station, consists of a high accuracy, compact, Battery Powered Unit with built‐in GSM Modem interface for continuous remote monitoring of Reference potential, AC interference voltage and pipe Current at Cathodic Protection (C.P.) test stations

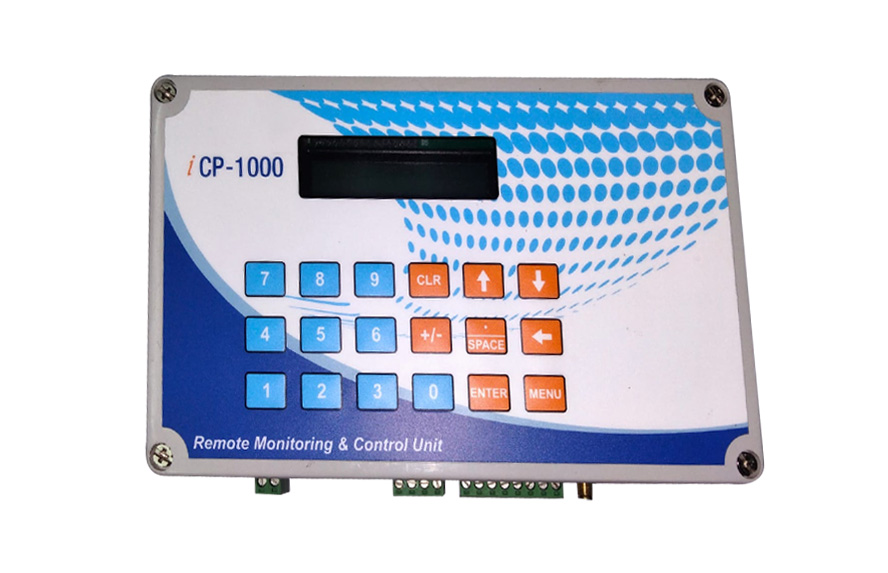

The GSM based remote monitoring unit iCP‐1000, for Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) unit monitoring, is a highly accurate, compact, low power, low cost, micro‐controller based Data Logger unit with built‐in GSM Modem which enables continuous Centralized Monitoring of Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) Unit parameters and at the same time notification for any alarm occurrence at central station as well on the configured cell numbers.
This system enables easy & wireless centralized monitoring of all Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) Unit parameters like O/P Voltage, O/P Current, Reference Potential and AC/DC Supply Voltage. The iCP‐1000 can be installed in the existing Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) Units and can directly accept CP T/R & CPPSM unit signals without the need of any additional Interface like transducers.

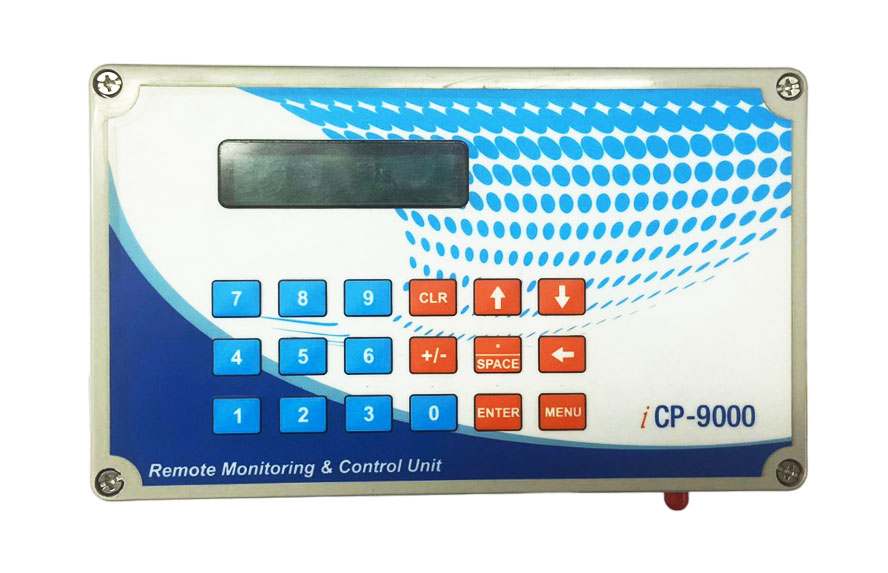

The RS485/Ethernet based remote monitoring & Control unit iCP‐9000, for Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) unit monitoring & Control, is a highly accurate, compact, low power, low cost, micro‐controller based Data Logger unit with built‐in Remote Monitoring & Remote Control system (RMCS). This unit enables continuous Centralized Monitoring & Control of Cathodic Protection Transformer Rectifier (CP T/R) and Cathodic Protection Power Supply Module (CPPSM) Unit parameters and at the same time notification for any alarm occurrence at central station/SCADA system.
This unit enables easy & centralized monitoring & Control of all CP T/R and CPPSM Unit parameters like O/P Voltage, O/P Current, Reference Potential etc. The iCP‐9000 can also be installed in the existing CP Units and can directly accept CP T/R & CPPSM unit signals without the need of any additional Interface like transducers. The iCP9000 operates through RS485/Ethernet protocol using Copper and FO network.

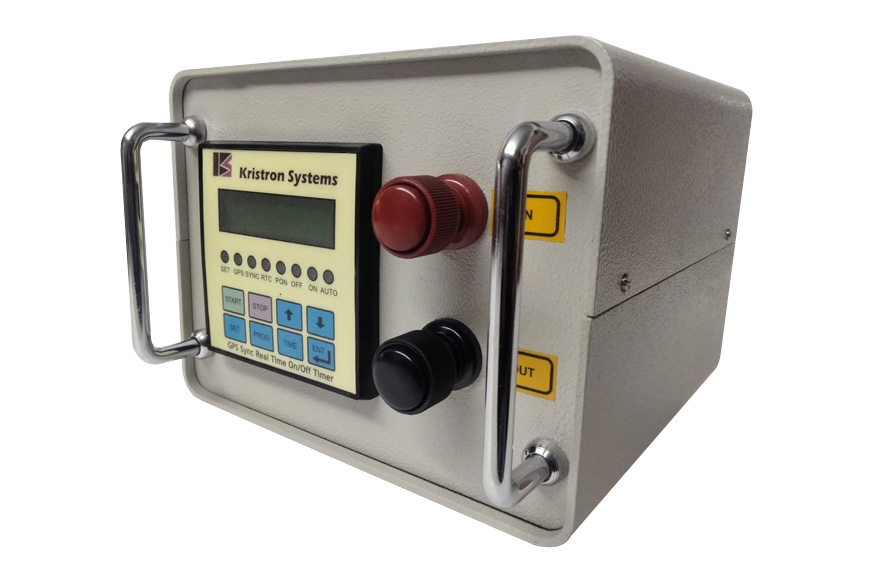

The Real Time On / Off Timer Interrupters are used for continuously switching Cathodic Protection Transformer (CP T/R) units on and off for cathodic protection current interruption surveys.
We have developed a high accuracy GPS technology based Timer Interrupter units for perfect synchronization of all interrupters during C.P. surveys
